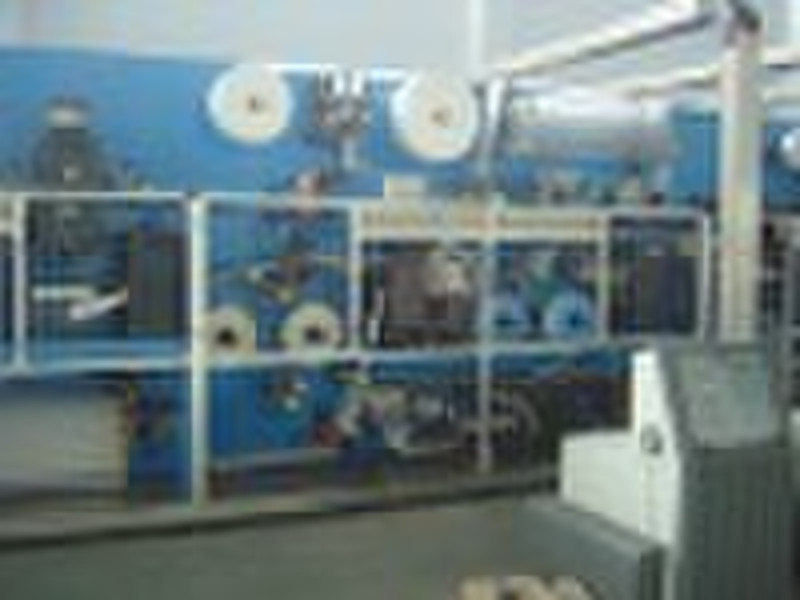

RL-YNK-300 Full-automatic baby diaper machine

1RL-YNK 300baby diaper machine can produce three sizes products; 2.RL-YNK 300 baby diaper machine mixed manuture with S.A.P.; 3.Equipped high effective pulverizer ; 4.Equipped with elastic waistline,front waist sticking,side waist sticking ,solid-protecting , leg-elastic structure; 5.Finished products stacked out in a line of triple-fold; 6.When lack of material or broken material take place ,it will alarm;it has the ability to elaminate the inferiority when changing or linking the material ; 7.The driving systerm connects with sealed gear bos, universal joint and sychronous belt,the gear boxadopts helical wimble gear type; 8.The positioning and molding process are all equipped with electromotive differential to operate and control,regulate relative positions without stoppong machine; 9.Include PLC+Touch-screen+Frequency-converter; 10.Opening raw material roll and linking can be operated automatically,with a constant tension control. Power: triphase380v Main Motor: 105kw Dimension: 20000*2500*2700mm Weight: 17000kg Speed: 200-300pcs/min Operator:2-3person Packing: wooden case packing
